Scorpion Racing

Narrow Body Race Series Rocker Arm

Narrow Body Race Series Rocker Arm

Our Price:
Regular price $27.99
Regular price Sale price $27.99
Sale Sold out
Chevrolet,V8,305-350 / Vortec
Part Number : 1037-1
Ratio
Stud Size
View full details

Description

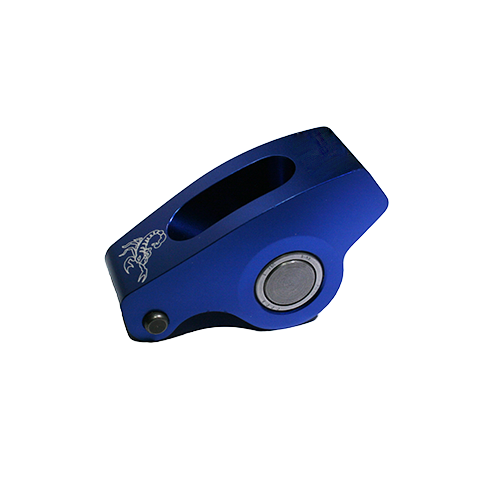

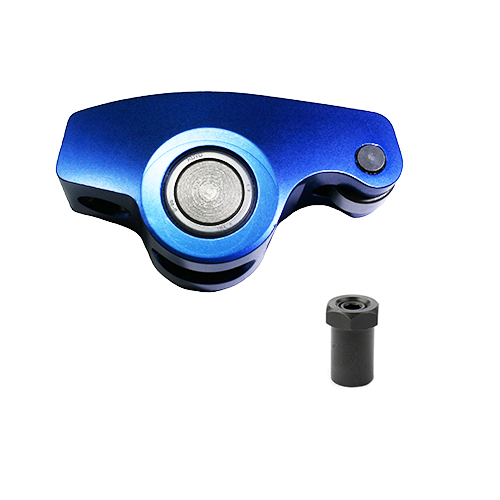

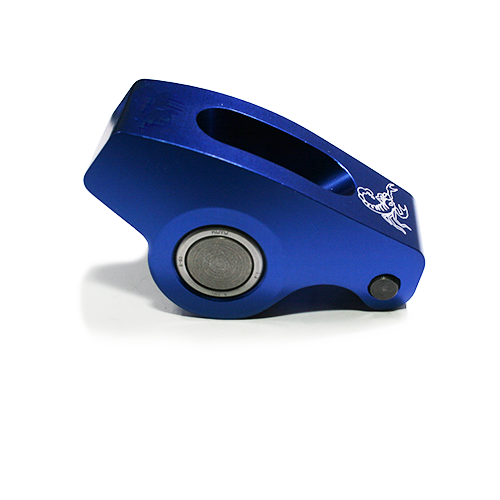

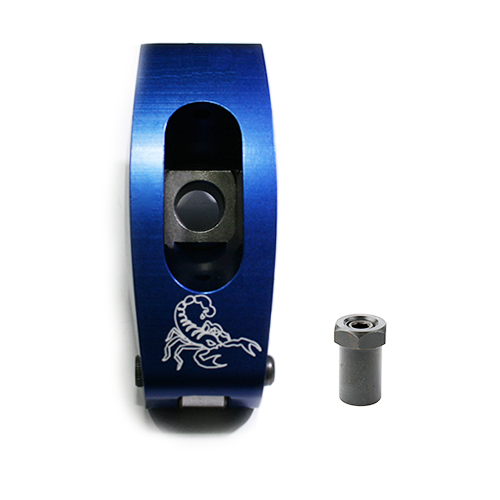

1.5 SBC Narrow Body Race Series Rocker Arm , 3/8" Stud Mount


1.5 SBC Narrow Body Rocker Arm, 3/8" Stud Mount

  • Ratio 1.5

  • 3/8" Stud Mount

  • Includes Polylock

  • Chevy V-8 305-350 / Vortec

  • Blue

  • Single rocker

  • Must use a guide plate

  • Designed for center bolt valve covers on Chevy


*Rockers for these engines also available in Narrow Body Self-Aligning
Race Series

NB Race Series Rocker Arms from Scorpion Racing Products!


Scorpion Narrow Body Race Rockers Scorpion Narrow Body Race Rockers Scorpion Narrow Body Race Rockers Scorpion Narrow Body Race Rockers

Made in the USA! That says it all!

Narrow Body Race Series Rocker Arms

Specific features include:

  • Narrow Body Design

  • Available ratios 1.5 thru 1.7 Chevy

  • Available ratios 1.6 & 1.72 Ford

  • Designed for center bolt valve covers on Chevy

  • Must use a guide plate

  • 1.2" Fulcrum Width

  • Handle .950" Lift and .950 lbs. Max Open Spring Pressure

  • Made in the USA


NOTE: FOR ALL MIXED RATIO ROCKER SETS

i=INTAKE and e=EXHAUST

All Scorpion Rocker Arms Feature:

  • Lightweight 7000 Series Aerospace-grade
    Aluminum Bodies for Maximum Strength and Durability

  • Needle Bearing Fulcrum and Roller Tip

  • Centerless Ground Trunnion

  • Centerless Ground Pin & Roller

  • Burr-Free Thru Hole in Trunnion

  • Large Machined Seat

  • Thick Walled Adjusting Nut

  • Pedestals Machined from Solid Steel

  • Black Oxide Coated Steel Parts

  • Anodized for Additional Protection and Durability

  • 100% CNC Machined in the USA

  • Exclusive LIFETIME WARRANTY*


Scorpion Racing Products NB Race Series

1.5 SBC 3/8 Narrow Body Blue Race Single Rocker Arm w/ Polylock

Additional Information

Weight 0.5185 oz
Dimentions 6 x 4 x 1 in

Specsheet

Make Chevrolet
Engine Type V8
Engine Family 305-350 / Vortec
Mounting Style Stud
Adjustment Adjustable
Ratio 1.5
Stud Size 3/8"
Offset no offset
Self Aligning No
Head Type Stock
Series NB Race
