Scorpion Racing
BBC Race Series Rocker Arms Set
BBC Race Series Rocker Arms Set
Our Price:
Sale
Sold out
Regular price
$466.95
Regular price
Sale price
$466.95
Unit price
/
per
Chevrolet,V8,Mark IV,Gen V, Gen VI 396-502
Part Number : 1014
Couldn't load pickup availability
Description

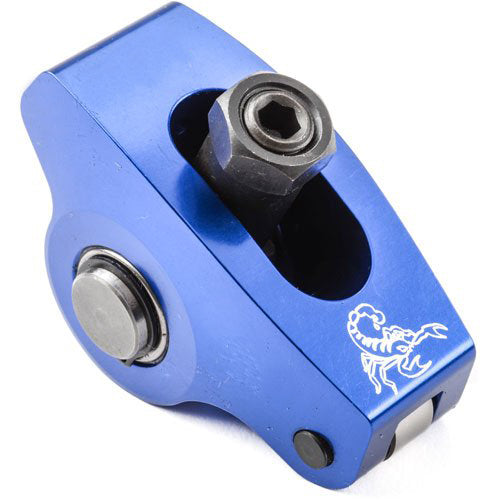

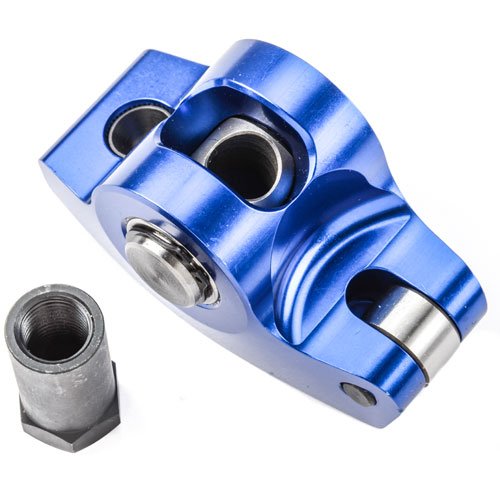

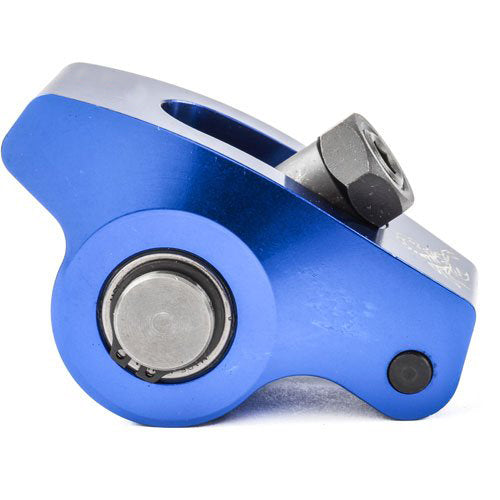

1.7 BBC 7/16" Race Series Rocker Arms , 7/16" Stud Mount
1.7 BBC Rocker Arms 7/16" Stud Mount
- Ratio 1.7
- 7/16" Stud Mount
- Includes 7/16" Polylock
- Big Block Chevy V-8 396 - 502
- Mark IV, Gen V, Gen VI, 8.1 Vortec
- Blue

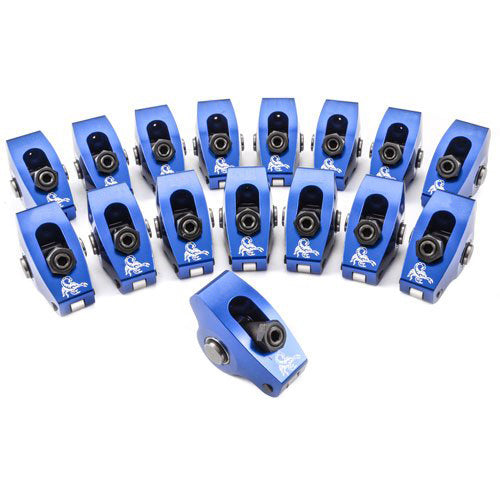

- Set of 16
- Set contains two rockers for cylinders 1 and 8 that are machined for valve cover clearance
*Rockers for these engines are also available in Endurance Series
Race Series Rocker Arms from Scorpion Racing Products!






Race Series Rocker Arms
Specific features include:
- Full Body Design
- Clear 1.625" Valve Springs
- 1.6" Fulcrum Width
- Handle .950" Lift and .950 lbs. Max Open Spring Pressure
- Made in the USA
NOTE: FOR ALL MIXED RATIO ROCKER SETS
i=INTAKE and e=EXHAUST
All Scorpion Rocker Arms Feature:
- Lightweight 7000 Series Aerospace-grade
Aluminum Bodies for Maximum Strength and Durability - Needle Bearing Fulcrum and Roller Tip
- Centerless Ground Trunnion
- Centerless Ground Pin & Roller
- Burr-Free Thru Hole in Trunnion
- Large Machined Seat
- Thick Walled Adjusting Nut
- Pedestals Machined from Solid Steel
- Black Oxide Coated Steel Parts
- Anodized for Additional Protection and Durability
- 100% CNC Machined in the USA
- Exclusive LIFETIME WARRANTY*
Additional Information
Weight | 9.0 oz |
---|---|
Dimentions | 18 x 4.25 x 3.25 in |
Specsheet
Make | Chevrolet |
---|---|
Engine Type | V8 |
Engine Family | Mark IV,Gen V, Gen VI 396-502 |
Mounting Style | Stud |
Adjustment | Adjustable |
Ratio | 1.7 |
Stud Size | 7/16" |
Offset | no offset |
Self Aligning | No |
Head Type | Stock |
Series | Race |
