Jeep Off-Road Series Rocker Arms
Jeep Off-Road Series Rocker Arms
Our Price:
Sale
Sold out
Regular price
$44.11
Regular price
Sale price
$44.11
Unit price
/
per
Part Number : 0500-1
Description

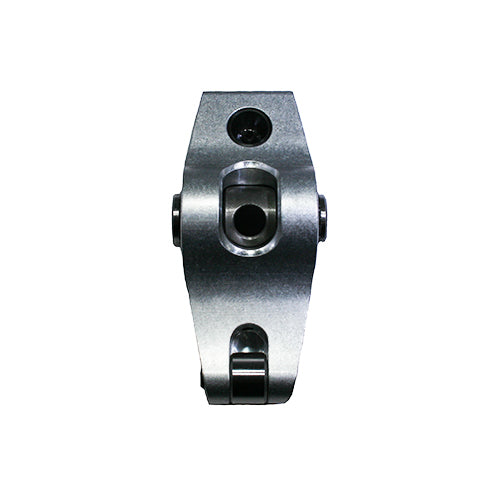

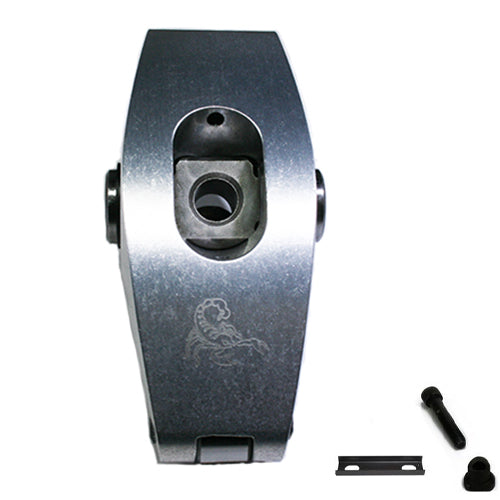

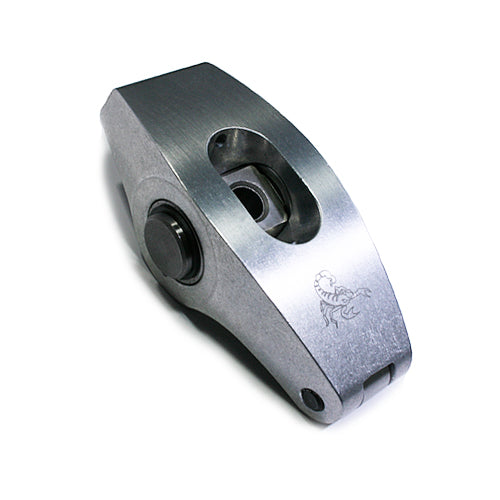

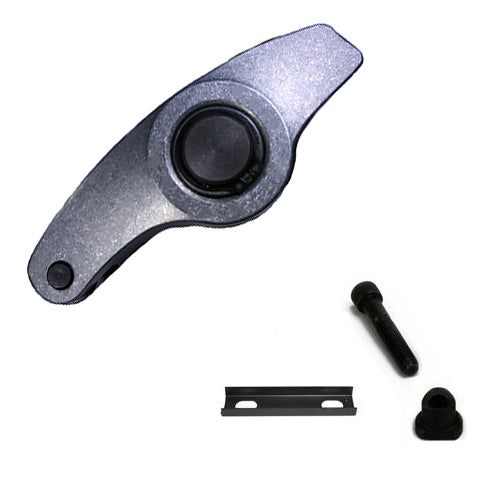

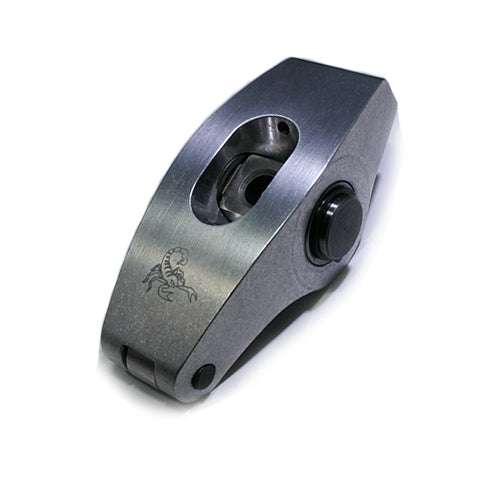

1.6 Jeep Off-Road Series Rocker Arm by Scorpion Racing Products
1.6 Jeep Rocker Arm. Scorpion Racing Products Off Road Series Rocker Arm.
- Non Adjustable Seat.
- 5/16-Pedestal.
- 1.6 ratio.
- AMC/Jeep In-Line 6.
- 4.0L 1986-2005.
- 232ci, 1964-1979
- 258ci 1971-1990
- Off Road Series

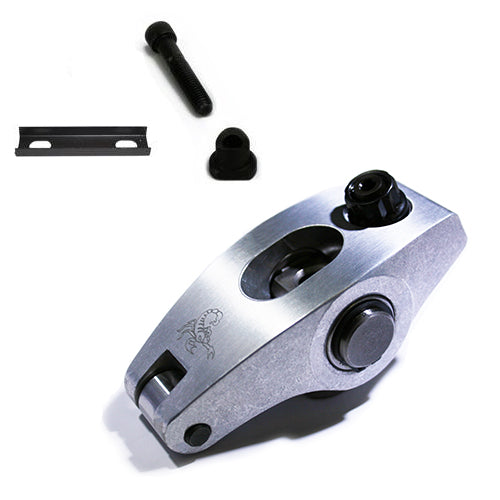

- Single piece with Pedestal, Bolt, and U-channel.
SCORPION RACING PRODUCTS OFF ROAD SERIES ROCKER ARMS!
OFF-ROAD PROVEN PERFORMANCE!
Take your rocker arms to the top level with more horsepower and reliability!
Scorpion Off-Road Series Rocker Arms are made for the most demanding endurance demanding off-road applications.
Features include:
- Designed to fit 232ci, 25Bci and 4.0L engines
- Aerospace grade 7000 series billet aluminum body
- Precision ground needle roller bearings
- Centerless ground fulcrum and roller
- Bearing quality ground 100 carbon steel pin
- Steel dual pedestal ensures correct rocker arm to valve alignment

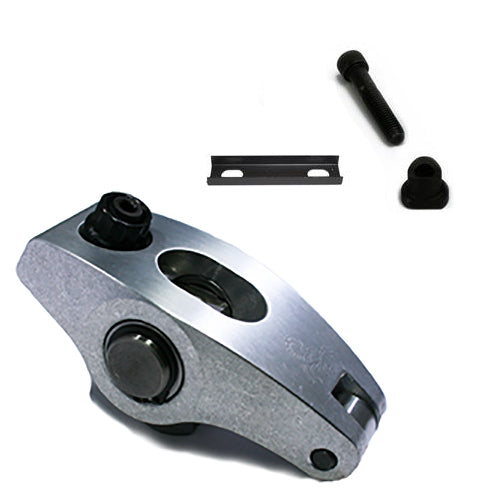

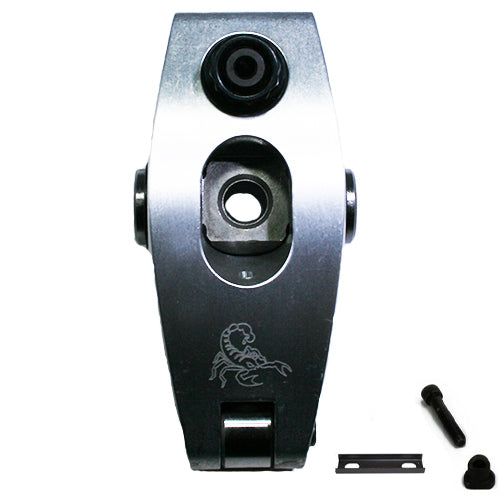

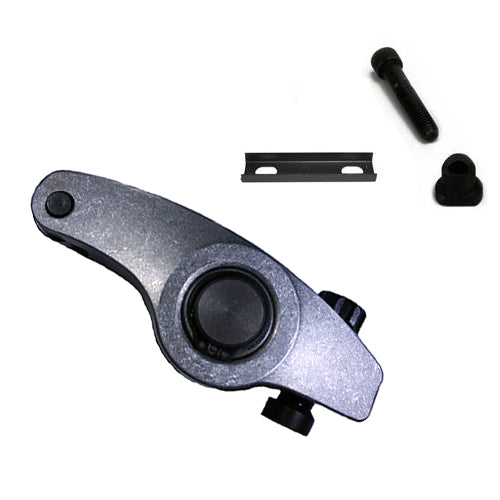

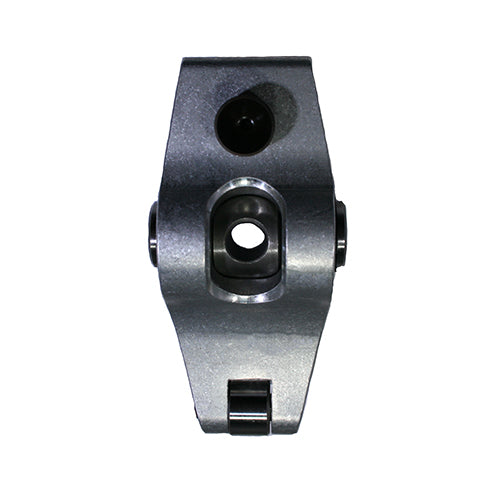

- Available in both adjustable and Non Adjustable configurations
- Body geometry optimized to deliver a true 1.6 ratio
- 5/16" mounting hardware included
- Will handle 380 lbs of open valve spring pressure (max recommended spring pressure for 5/16 fastener)
- Will clear stock valve cover (with removal of internal PCV baffle)
- MADE IN THE USA!
- Exclusive LIFETIME WARRANTY*
Jeep Off-Road Series Rocker Arms, 1.6 Jeep Rocker Arms
Scorpion's Exclusive Lifetime Warranty!
1.6 AMC/Jeep In-Line 6, 4.0L 1986-2005, 232ci, 1964-1979, 258ci 1971-1990 5/16-Pedestal Non-Adj Off Road Series-Single piece
Additional Information
Weight | 0.4295 oz |
---|---|
Dimentions | 6 x 4 x 1 in |
Specsheet
Make | |
---|---|
Engine Type | I6 |
Engine Family | AMC/Jeep I6, 4.0L 1986-2005, 232ci, 1964-1979, 258ci 1971-1990 |
Mounting Style | Pedestal |
Adjustment | Non Adjustable |
Ratio | 1.6 |
Stud Size | |
Offset | no offset |
Self Aligning | No |
Head Type | Stock |
Series | Jeep Off Road |
