Scorpion Racing

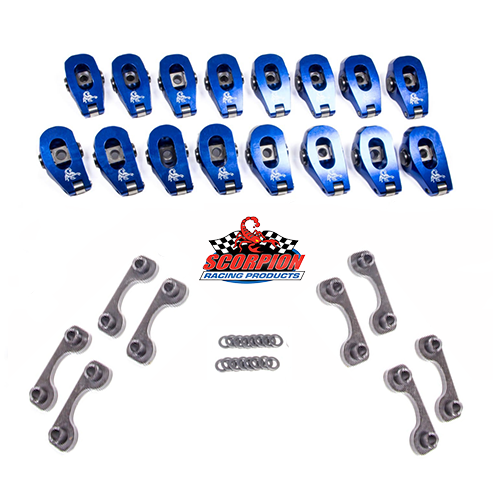

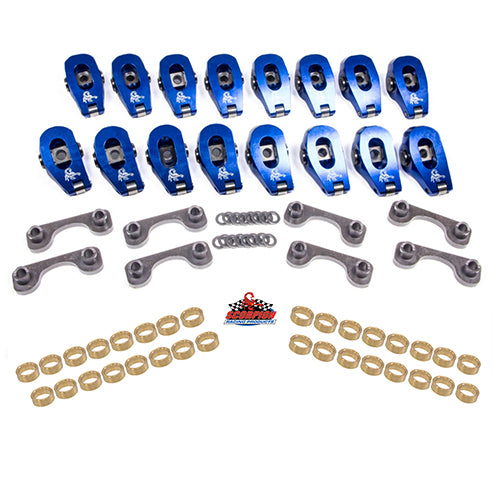

L92, LS3 LS Race Series Rocker Arms Set
L92, LS3 LS Race Series Rocker Arms Set
Our Price:
Sale
Sold out
Regular price
$824.26
Regular price
Sale price
$824.26
Unit price
/
per
Chevrolet,V8,L92, LS3, LS9, LQ9
Part Number : 1162
Couldn't load pickup availability
Description
1.7 L92 , LS3 Race Series Rocker Arms , TrickFlow Heads, 8mm
1.7 L92, LS3 Rocker Arms 8mm Pedestal Mount Non Adjustable. TrickFlow Heads
- Ratio 1.7
- Pedestal Mount
- Includes Pedestal, 8mm Bolts
- Chevy L92, LS3, LS9, LQ9
- TrickFlow Heads
- Blue
- Set of 16
- The only "No Machining Required" kits in production
LS Race Series Rocker Arms from Scorpion Racing Products!




LS Race Series Rocker Arms
Specific features include:
- Full Body Design
- Clear 1.625" Valve Springs
- 1.6" Fulcrum Width
- Handle .950" Lift and .950 lbs. Max Open Spring Pressure
- Made in the USA
NOTE: FOR ALL MIXED RATIO ROCKER SETS
i=INTAKE and e=EXHAUST
All Scorpion Rocker Arms Feature:
- Lightweight 7000 Series Aerospace-grade
Aluminum Bodies for Maximum Strength and Durability - Needle Bearing Fulcrum and Roller Tip
- Centerless Ground Trunnion
- Centerless Ground Pin & Roller
- Burr-Free Thru Hole in Trunnion
- Large Machined Seat
- Thick Walled Adjusting Nut
- Pedestals Machined from Solid Steel
- Black Oxide Coated Steel Parts
- Anodized for Additional Protection and Durability
- 100% CNC Machined in the USA
- Exclusive LIFETIME WARRANTY*
1.7 V-8 L92, LS3 TrickFlow Head Race Series Rocker Set of 16
Additional Information
Weight | 9.0 oz |
---|---|
Dimentions | 18 x 4.25 x 3.25 in |
Specsheet
Make | Chevrolet |
---|---|
Engine Type | V8 |
Engine Family | L92, LS3, LS9, LQ9 |
Mounting Style | Pedestal |
Adjustment | Non Adjustable |
Ratio | 1.7 |
Stud Size | 8mm bolt |
Offset | no offset |
Self Aligning | No |
Head Type | Trickflow Heads |
Series | LS Race |
