Scorpion Racing

LS1 LS Race Series Rocker Arms Set

LS1 LS Race Series Rocker Arms Set

Our Price:
Regular price $575.00
Regular price Sale price $575.00
Sale Sold out
Chevrolet,V8,LS1/LS2/LS6/LS364/LS400
Part Number : 1098
Ratio
Stud Size
Bushings
View full details

Description

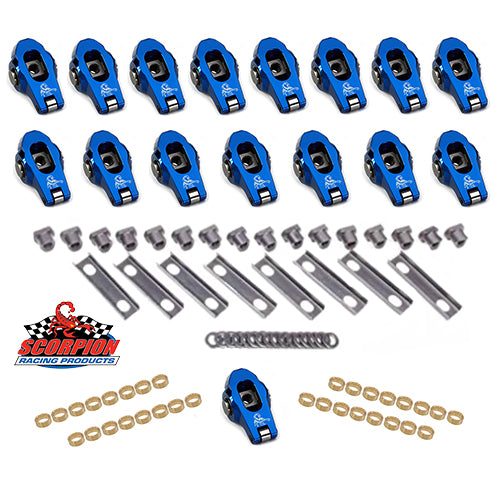

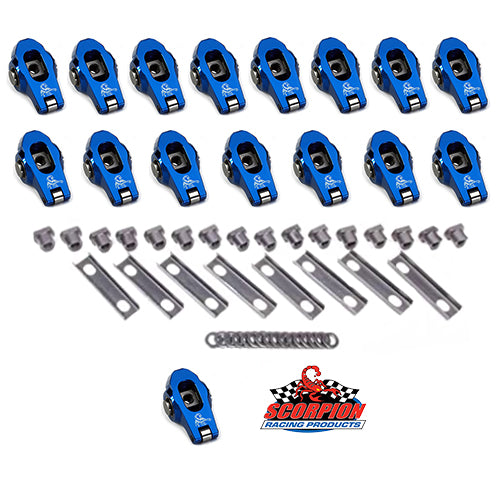

1.7 LS1 Race Series Rocker Arms , 8mm Pedestal Mount


1.7 LS1 Rocker Arms 8mm Pedestal Mount Non Adjustable.

  • Ratio 1.7

  • Pedestal Mount

  • Includes Pedestal, U-channel

  • Chevy LS1, LS2, LS6, LS364/400

  • Cathedral Port Heads

  • Blue

  • Set of 16

  • The only "No Machining Required" kits in production

  • Use Standard length pushrods and factory attaching bolts


LS Race Series Rocker Arms from Scorpion Racing Products!




Scorpion LS Race Series Rocker Arms - Chevy LS1, LS2, LS6, LS364/400

LS Race Series Rocker Arms

Made in the USA! That says it all!

LS Race Series Rocker Arms

Specific features include:

  • Full Body Design

  • Clear 1.625" Valve Springs

  • 1.6" Fulcrum Width

  • Handle .950" Lift and .950 lbs. Max Open Spring Pressure

  • Made in the USA


NOTE: FOR ALL MIXED RATIO ROCKER SETS

i=INTAKE and e=EXHAUST

All Scorpion Rocker Arms Feature:

  • Lightweight 7000 Series Aerospace-grade
    Aluminum Bodies for Maximum Strength and Durability

  • Needle Bearing Fulcrum and Roller Tip

  • Centerless Ground Trunnion

  • Centerless Ground Pin & Roller

  • Burr-Free Thru Hole in Trunnion

  • Large Machined Seat

  • Thick Walled Adjusting Nut

  • Pedestals Machined from Solid Steel

  • Black Oxide Coated Steel Parts

  • Anodized for Additional Protection and Durability

  • 100% CNC Machined in the USA

  • Exclusive LIFETIME WARRANTY*






Additional Information

Weight 9.0 oz
Dimentions 18 x 4.25 x 3.25 in

Specsheet

Make Chevrolet
Engine Type V8
Engine Family LS1/LS2/LS6/LS364/LS400
Mounting Style Pedestal
Adjustment Non Adjustable
Ratio 1.7
Stud Size 8mm bolt
Offset no offset
Self Aligning No
Head Type Cathedral Port
Series LS Race
