Scorpion Racing
Chrysler Endurance Series Rocker Arm
Chrysler Endurance Series Rocker Arm
Our Price:
Sale
Sold out
Regular price
$50.84
Regular price
Sale price
$50.84
Unit price
/
per
Chrysler,V8,Magnum 1992-2003 5.2L (318ci) & 5.9L (360ci)
Part Number : 3300-1
Couldn't load pickup availability
Description

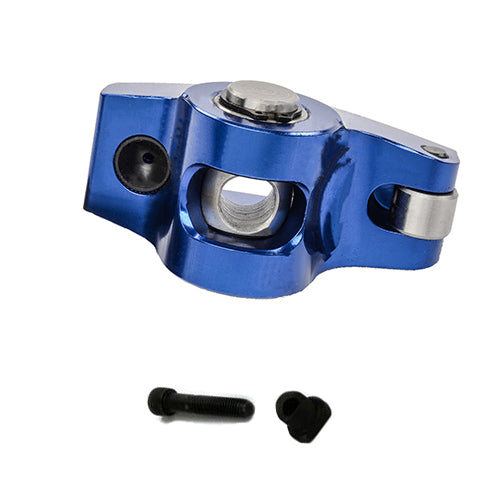

1.6 SB Chrysler 5/16" Endurance Series Rocker Arm , 5/16" Pedestal Mount
1.6 SB Chrysler Rocker Arm 5/16" Pedestal Mount Non Adjustable.
- Ratio 1.6
- 5/16" Pedestal Mount
- No Machining Required
- Includes Bolt, Pedestal & U-Channel
- Blue
- Single Piece
Endurance Series Rocker Arms from Scorpion Racing Products!
![Scorpion Racing Products Endurance Series Rocker Arms](https://cdn.shopify.com/s/files/1/0573/7889/7971/files/Endurance-Single-Ped_72fca0f9-b9f4-4eda-87c2-622b83f42a2b.png?v=1689277474)
![](https://cdn.shopify.com/s/files/1/0573/7889/7971/files/Endurance-Single-Ped-4-150x150.jpg)
![](https://cdn.shopify.com/s/files/1/0573/7889/7971/files/Endurance-Single-Ped-3-150x150.jpg)
![Made in the USA! That says it all!](https://cdn.shopify.com/s/files/1/0573/7889/7971/files/made-in-usa-badge.png)
Endurance Series Rocker Arms
Specific features include: ENDURANCE SERIES Rocker Arms
have Race Series features PLUS:
-
- Lighter weight for faster RPM gain - average 28 grams
lighter than Race Series rocker arms - Lower profile than Race Series rocker arms for better
fitment under most stock valve covers - Shorter polylocks than Race Series polylocks for better
valve cover clearance - Handle .750” lift & 750 lbs max open spring pressure
- NEW Adjustable Pedestal Mount Rockers
- Lighter weight for faster RPM gain - average 28 grams
NOTE: FOR ALL MIXED RATIO ROCKER SETS i=INTAKE and e=EXHAUST
All Scorpion Rocker Arms Feature:
-
- Lightweight 7000 Series Aerospace-grade
Aluminum Bodies for Maximum Strength and Durability - Needle Bearing Fulcrum and Roller Tip
- Centerless Ground Trunnion
- Centerless Ground Pin & Roller
- Burr-Free Thru Hole in Trunnion
- Large Machined Seat
- Thick Walled Adjusting Nut
- Pedestals Machined from Solid Steel
- Black Oxide Coated Steel Parts
- Anodized for Additional Protection and Durability
- 100% CNC Machined in the USA
- Exclusive LIFETIME WARRANTY*
- Lightweight 7000 Series Aerospace-grade
Scorpion Racing Products Endurance Series
1.6 SB Chry V-8 Magnum 5/16 Pedestal Endurance Single Rocker w/adjustable seat, pedestal , 5/16 bolt & u-channel
Additional Information
Weight | 0.5185 oz |
---|---|
Dimentions | 4 x 6 x 1 in |
Specsheet
Make | Chrysler |
---|---|
Engine Type | V8 |
Engine Family | Magnum 1992-2003 5.2L (318ci) & 5.9L (360ci) |
Mounting Style | Pedestal |
Adjustment | Non Adjustable |
Ratio | 1.6 |
Stud Size | 5/16" |
Offset | no offset |
Self Aligning | No |
Head Type | Stock |
Series | Endurance |
